#include <HierNetlist.hpp>

Inheritance diagram for HierNetlist< graph_t >:

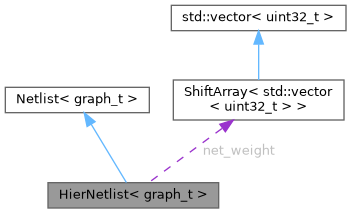

Collaboration diagram for HierNetlist< graph_t >:

[legend]

Public Types
using	nodeview_t = typename graph_t::nodeview_t

using	node_t = typename graph_t::node_t

using	index_t = typename nodeview_t::key_type

Public Types inherited from Netlist< graph_t >
using	nodeview_t = typename graph_t::nodeview_t

using	node_t = typename graph_t::node_t

using	index_t = typename nodeview_t::key_type

Public Member Functions
	HierNetlist (graph_t gr, const nodeview_t &modules, const nodeview_t &nets)
	Constructs a new HierNetlist object.

void	projection_down (std::span< const std::uint8_t > part, std::span< std::uint8_t > part_down) const
	Projection down.

void	projection_up (std::span< const std::uint8_t > part, std::span< std::uint8_t > part_up) const
	Projects a part up to a higher level of the hierarchy.

auto	get_net_weight (const node_t &net) const -> uint32_t
	Returns the weight of the specified net.

Public Member Functions inherited from Netlist< graph_t >
	Netlist (graph_t gr, const nodeview_t &modules, const nodeview_t &nets)
	Construct a new Netlist object.

	Netlist (graph_t gr, uint32_t numModules, uint32_t numNets)
	Construct a new Netlist object.

auto	begin () const

auto	end () const

auto	number_of_modules () const -> size_t
	Get the number of modules.

auto	number_of_nets () const -> size_t
	Get the number of nets.

auto	number_of_nodes () const -> size_t
	Get the number of nodes.

auto	get_max_degree () const -> size_t
	Get the max degree.

auto	get_max_net_degree () const -> size_t
	Get the max net degree.

auto	get_module_weight (const node_t &v) const -> unsigned int
	Get the module weight.

auto	get_net_weight (const node_t &) const -> uint32_t
	Get the net weight.

Public Attributes
const Netlist< graph_t > *	parent
	Pointer to the parent netlist in the hierarchy.

std::vector< node_t >	node_up_map
	Mapping from this level's nodes to parent's nodes (upward)

std::vector< node_t >	node_down_map
	Mapping from this level's nodes to children's nodes (downward)

py::dict< index_t, node_t >	cluster_down_map
	Mapping from cluster index to child nodes.

ShiftArray< std::vector< uint32_t > >	net_weight
	Net weights for each net in the hierarchical netlist.

Public Attributes inherited from Netlist< graph_t >
graph_t	gr
	The underlying graph structure.

nodeview_t	modules
	Node view for modules (circuit components)

nodeview_t	nets
	Node view for nets (connections)

size_t	num_modules {}
	Number of modules in the netlist.

size_t	num_nets {}
	Number of nets in the netlist.

size_t	num_pads {}
	Number of pads (I/O nodes)

size_t	max_degree {}
	Maximum degree among all modules.

size_t	max_net_degree {}
	Maximum degree among all nets.

std::vector< unsigned int >	module_weight
	Weight for each module.

bool	has_fixed_modules {}
	Flag indicating whether any modules have fixed positions.

py::set< node_t >	module_fixed
	Set of modules with fixed positions.

Detailed Description

template<typename graph_t>
class HierNetlist< graph_t >

Hierarchical Netlist.

HierNetlist extends the Netlist class to support multi-level partitioning algorithms. It maintains additional mappings and weights for hierarchical (coarsening) representations of the netlist during the partitioning process.

Template Parameters

graph_t The graph type (e.g., xnetwork::SimpleGraph)

Member Typedef Documentation

◆ index_t

template<typename graph_t >

using HierNetlist< graph_t >::index_t = typename nodeview_t::key_type

◆ node_t

template<typename graph_t >

using HierNetlist< graph_t >::node_t = typename graph_t::node_t

◆ nodeview_t

template<typename graph_t >

using HierNetlist< graph_t >::nodeview_t = typename graph_t::nodeview_t

Constructor & Destructor Documentation

◆ HierNetlist()

template<typename graph_t >

HierNetlist< graph_t >::HierNetlist	(	graph_t	gr,
		const nodeview_t &	modules,
		const nodeview_t &	nets
	)

Constructs a new HierNetlist object.

Parameters

[in]	gr	The graph object to be used for the HierNetlist.
[in]	modules	The nodeview of modules for the HierNetlist.
[in]	nets	The nodeview of nets for the HierNetlist.

Member Function Documentation

◆ get_net_weight()

template<typename graph_t >

auto HierNetlist< graph_t >::get_net_weight ( const node_t & net ) const -> uint32_t

inline

Returns the weight of the specified net.

If the net_weight array is empty, the default net weight of 1 is returned. Otherwise, the weight of the specified net is returned from the net_weight array.

Parameters

net	The net for which to retrieve the weight.

Returns: The weight of the specified net.

◆ projection_down()

template<typename graph_t >

void HierNetlist< graph_t >::projection_down	(	std::span< const std::uint8_t >	part,
		std::span< std::uint8_t >	part_down
	)		const

Projection down.

Projects a part down to a lower level of the hierarchy.

Parameters

[in]	part	The part to be projected down.
[out]	part_down	The projected part at the lower level.

◆ projection_up()

template<typename graph_t >

void HierNetlist< graph_t >::projection_up	(	std::span< const std::uint8_t >	part,
		std::span< std::uint8_t >	part_up
	)		const

Projects a part up to a higher level of the hierarchy.

Parameters

[in]	part	The part to be projected up.
[out]	part_up	The projected part at the higher level.

Member Data Documentation

◆ cluster_down_map

template<typename graph_t >

py::dict<index_t, node_t> HierNetlist< graph_t >::cluster_down_map

Mapping from cluster index to child nodes.

◆ net_weight

template<typename graph_t >

ShiftArray<std::vector<uint32_t> > HierNetlist< graph_t >::net_weight

Net weights for each net in the hierarchical netlist.

◆ node_down_map

template<typename graph_t >

std::vector<node_t> HierNetlist< graph_t >::node_down_map

Mapping from this level's nodes to children's nodes (downward)

◆ node_up_map

template<typename graph_t >

std::vector<node_t> HierNetlist< graph_t >::node_up_map

Mapping from this level's nodes to parent's nodes (upward)

◆ parent

template<typename graph_t >

const Netlist<graph_t>* HierNetlist< graph_t >::parent

Pointer to the parent netlist in the hierarchy.

The documentation for this class was generated from the following file:

ckpttn/HierNetlist.hpp
